Products Specification
| Application | Recessed-mounted |
| SDCM | <3 |
| Power | 10W, 15W |
| Static White | 2700K, 3000K, 3500K, 4000K |
| Dim-to Warm | 2000K-3000K |
| Tunable White | 2700K-6000K |
General Features
Accessories
| Image | Description | Model NO# | Available for |
|---|---|---|---|
 | Honeycomb | EM060-H | EM060 |
 | Soft Lens | EM060-L | EM060 |
Secondary Reflector

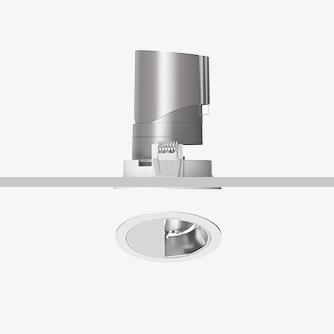

ELLA-Hotel Wall Washer 10W-15W
ELLA-Hotel downlight fixtures offer exceptional performance with wall washing optics, 3 reflector colors and 2 accessories. All realized in a unified classic design with exceptional light quality.
Awesome Anti-glare
Excellent 38 degree cut-off provides very high visual comfort for healthy lighting.
Super Modular Luminaire
Quick twist of LED module + mounting ring combos.
Diverse Mounting Rings
Various shapes—round, square, trim, trimless, single, double and triple.
Specs
Features
- Interchangeable secondary reflectors for anti-glare.
- Super modular design, tool-free replacement.
- Anti-glare accessories for maximum visual comfort.
- IP20 standard, IP44 optional.
Specsheet
| Order Info. | Power | LED Current | Luminous Flux(lm) | CRI | CCT | Beam |
|---|---|---|---|---|---|---|
| EM060-EF61RF02 | 10W | 250mA | 458 | 90+ | 3000K | Wall Wash 30°x40° |
| EM060-EF61RF02 | 10W | 250mA | 484 | 90+ | 3000K | Wall Wash 40°x50° |
| EM060-EF61RF02 | 15W | 350mA | 611 | 90+ | 3000K | Wall Wash 30°x40° |
| EM060-EF61RF02 | 15W | 350mA | 657 | 90+ | 3000K | Wall Wash 40°x50° |
Accessories
See accessories table above for Honeycomb and Soft Lens.
