Products Specification
| Application | Recessed-mounted, Pendant |
| SDCM | <3 |
| Beam Angle | 15°, 24°, 38°, 50° |
| Power | 5W, 8W, 10W, 15W, 20W, 25W, 30W, 35W |
| Static White | 2700K, 3000K, 3500K, 4000K |
| Dim-to Warm | 2000K-3000K |
| Tunable White | 2700K-6000K |
| Full Spectrum | RGBCW |
General Features
Accessories
| Image | Description | Model NO# | Available for |
|---|---|---|---|
 |
Honeycomb | EM050-H | EM050 |
 |
Soft Lens | EM050-L | EM050 |
|
Honeycomb | EM060-H | EM060 |
 |
Soft Lens | EM060-L | EM060 |
 |
Honeycomb | EM070-H | EM070 |
 |
Soft Lens | EM070-L | EM070 |
 |
Honeycomb | EM090-H | EM090 |
|
Soft Lens | EM090-L | EM090 |
Secondary Reflector

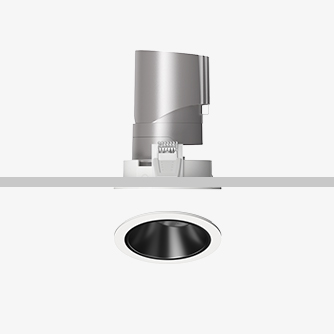

ELLA-Hotel Round Fixed 5W-35W
ELLA-Hotel downlight fixtures offer an all-time exceptional performance with a wide range of options covering 4 sizes, 8 wattages, fixed mounting ring, round shape, single luminaire combo, 3 reflector colors and 2 accessories. All realized in a unified classic design with exceptional light quality.
4 Beam Angles
15°, 24°, 38° and 50° beam angles with high-level light quality.
Above-average Anti-glare
38° cut-off angle for high visual comfort.
Super Modular Luminaire
Quick twist of LED module + mounting ring combos.
Ultra Easy Installation
No tools needed, install and remove in seconds.
Specs
Features
- Elegant compact style, versatile in use.
- Precise light control with 15°, 24°, 38°, 50° beam lens options.
- Interchangeable secondary reflectors for anti-glare.
- Super modular design, tool-free replacement.
- Anti-glare accessories for maximum visual comfort.
Specsheet
| Order Info. | Power | LED Current | Luminous Flux(lm) | CRI | CCT | Beam Angle |
|---|---|---|---|---|---|---|
| EM050-EF51RF01-15D | 5W | 120mA | 256 | 90+ | 3000K | 15deg |
| EM050-EF51RF01-24D | 5W | 120mA | 312 | 90+ | 3000K | 24deg |
| EM050-EF51RF01-38D | 5W | 120mA | 346 | 90+ | 3000K | 38deg |
| EM050-EF51RF01-50D | 5W | 120mA | 253 | 90+ | 3000K | 50deg |
| EM050-EF51RF01-15D | 8W | 180mA | 412 | 90+ | 3000K | 15deg |
| EM050-EF51RF01-24D | 8W | 180mA | 447 | 90+ | 3000K | 24deg |
| EM050-EF51RF01-38D | 8W | 180mA | 482 | 90+ | 3000K | 38deg |
| EM050-EF51RF01-50D | 8W | 180mA | 364 | 90+ | 3000K | 50deg |
| EM060-EF61RF01-15D | 10W | 250mA | 802 | 90+ | 3000K | 15deg |
| EM060-EF61RF01-24D | 10W | 250mA | 875 | 90+ | 3000K | 24deg |
| EM060-EF61RF01-38D | 10W | 250mA | 893 | 90+ | 3000K | 38deg |
| EM060-EF61RF01-50D | 10W | 250mA | 852 | 90+ | 3000K | 50deg |
| EM060-EF61RF01-15D | 15W | 350mA | 1059 | 90+ | 3000K | 15deg |
| EM060-EF61RF01-24D | 15W | 350mA | 1158 | 90+ | 3000K | 24deg |
| EM060-EF61RF01-38D | 15W | 350mA | 1124 | 90+ | 3000K | 38deg |
| EM060-EF61RF01-50D | 15W | 350mA | 1124 | 90+ | 3000K | 50deg |
| EM070-EF71RF01-15D | 20W | 500mA | 1494 | 90+ | 3000K | 15deg |
| EM070-EF71RF01-24D | 20W | 500mA | 1653 | 90+ | 3000K | 24deg |
| EM070-EF71RF01-38D | 20W | 500mA | 1670 | 90+ | 3000K | 38deg |
| EM070-EF71RF01-50D | 20W | 500mA | 1622 | 90+ | 3000K | 50deg |
| EM070-EF71RF01-15D | 25W | 600mA | 1652 | 90+ | 3000K | 15deg |
| EM070-EF71RF01-24D | 25W | 600mA | 1948 | 90+ | 3000K | 24deg |
| EM070-EF71RF01-38D | 25W | 600mA | 1944 | 90+ | 3000K | 38deg |
| EM070-EF71RF01-50D | 25W | 600mA | 1901 | 90+ | 3000K | 50deg |
| EM090-EF91RF01-15D | 30W | 700mA | 2450 | 90+ | 3000K | 15deg |
| EM090-EF91RF01-24D | 30W | 700mA | 2550 | 90+ | 3000K | 24deg |
| EM090-EF91RF01-38D | 30W | 700mA | 2608 | 90+ | 3000K | 38deg |
| EM090-EF91RF01-50D | 30W | 700mA | 2436 | 90+ | 3000K | 50deg |
| EM090-EF91RF01-15D | 35W | 800mA | 2770 | 90+ | 3000K | 15deg |
| EM090-EF91RF01-24D | 35W | 800mA | 2875 | 90+ | 3000K | 24deg |
| EM090-EF91RF01-38D | 35W | 800mA | 2904 | 90+ | 3000K | 38deg |
| EM090-EF91RF01-50D | 35W | 800mA | 2738 | 90+ | 3000K | 50deg |
Accessories
See accessories table above for Honeycomb and Soft Lens options per model size.
