Products Specification
| Application | Recessed-mounted |
| SDCM | ≤3 |
| Beam Angle | 15°(8W), 28°, 36°, 42° |
| Power | 8W, 10W |
| Static White | 2700K, 3000K, 3500K, 4000K |
| Dim-to Warm | 1800K-3000K |
| Tunable White | 2700K-6000K |
General Features
Accessories
| Image | Description | Model NO# | Available for |
|---|---|---|---|
 |
Honeycomb | DM50-H | DM50 |
 |
Soft Lens | DM50-L | DM50 |
Secondary Reflector

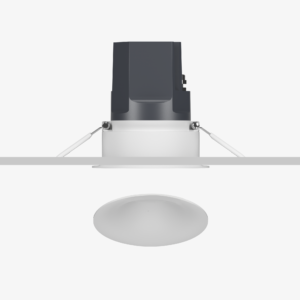

DELLA Fixed Downlight 8W-10W
DELLA Fixed Downlight embodies exceptional optical control and glare management in a clean, minimalist form. With its narrow bezel seamlessly integrating into the ceiling, it delivers visual comfort through a precise 45° cut-off angle and low UGR. Tool-free modularity allows easy optical and LED engine replacement.
4 Beam Angles
Available in 15°(8W), 28°, 36° and 42° beam angles.
Pull Ring Design (Foldable)
No more hard work, pull out LED engine in second.
Super Modular Design
Any parts could be replaced manually without tools.
Specs
Features
- All optics and trims replaceable without tools; LED engine can be swapped independently.
- Super modular design for tool-free replacement.
- 45° cut-off angle with excellent UGR performance.
- Minimal bezel for clean ceiling appearance.
Specsheet
| Order Info. | Power | Luminous Flux(lm) | Max Candela(cd) | CRI | CCT | Beam Angle |
|---|---|---|---|---|---|---|
| DM50-DF51RF01N | 8W | 470 | 4023 | 90+ | 3000K | 15° |
| DM50-DF51RF01N | 8W | 563 | 2256 | 90+ | 3000K | 28° |
| DM50-DF51RF01N | 8W | 567 | 1503 | 90+ | 3000K | 36° |
| DM50-DF51RF01N | 8W | 608 | 1316 | 90+ | 3000K | 42° |
| DM50-DF51RF01N | 10W | 715 | 2864 | 90+ | 3000K | 28° |
| DM50-DF51RF01N | 10W | 712 | 1912 | 90+ | 3000K | 36° |
| DM50-DF51RF01N | 10W | 771 | 1665 | 90+ | 3000K | 42° |
