Meet the NOVA-Orb: Small in Size, Big in Impact
When space is tight but quality can”t be compromised, the NOVA-Orb magnetic track light delivers exactly what professionals need. This 4W compact orb-shaped LED luminaire is purpose-built for modern magnetic track systems, bringing precise accent lighting to commercial and residential spaces without the visual bulk of traditional track fixtures.
What Is the NOVA-Orb?
The NOVA-Orb is a 20-Series magnetic luminaire from ENCORE, featuring a sleek spherical (orb) housing design that blends seamlessly into minimalist interiors. Rated at just 4W, it produces 374 lumens at 3000K — an impressive 85 lm/W efficacy that rivals much larger fixtures. Its 30° beam angle makes it ideal for accent and display lighting where focused, high-quality illumination is essential.
NOVA-Orb Specifications
| Specification | Value |
|---|---|
| Power | 4W |
| Input Voltage | DC48V |
| Beam Angle | 30° |
| CRI | 80+ |
| Color Temperature | 3000K / 4000K |
| Lumens Output (3000K) | 374 lm |
| Luminous Efficacy | 85 lm/W |
| Track Compatibility | 15mm & 20mm Magnetic Track |
| Body Color | Black / White |
| Diameter | Ø80mm |
Download the full technical specification sheet: NOVA-Orb Spec Sheet (PDF)
Key Features of the NOVA-Orb
- Compact Orb Design: The spherical housing minimizes visual impact while maximizing light output — perfect for clean, modern ceiling aesthetics.
- 4W Flicker-Free Performance: Built-in flicker-free driver technology ensures stable, comfortable illumination with no stroboscopic effects — critical for retail and hospitality environments.
- Safe DC48V Operation: Low-voltage magnetic track system reduces electrical hazard risk and simplifies installation.
- CRI 80+ Color Rendering: Delivers accurate color representation for merchandise displays, artwork, and living spaces.
- Dual Color Temperature: Warm 3000K for inviting ambient lighting; neutral 4000K for task-oriented spaces.
- Hot-Plug Safe Magnetic Connection: Tool-free insertion and repositioning on compatible magnetic tracks — no power interruption needed.
- Smart Control Ready: Compatible with 0-10V dimming, DALI2, and Bluetooth control protocols for smart lighting integration.
Beam Performance: What 30° Looks Like in Practice
The NOVA-Orb”s 30° narrow beam creates a well-defined pool of light ideal for spot lighting. At a mounting height of 1 meter, a single NOVA-Orb delivers approximately 2,689 lux at center beam — sufficient for focused displays without significant spill. Here”s a reference guide for spacing:
| Mounting Height | Approx. Center Beam Lux | Recommended Spacing |
|---|---|---|
| 0.5m | ~1,276 lux | 0.8 – 1.0m apart |
| 1.0m | ~2,689 lux | 1.2 – 1.5m apart |
| 1.5m | ~3,306 lux | 1.5 – 2.0m apart |
| 2.0m | ~4,173 lux | 2.0 – 2.5m apart |
Where to Use the NOVA-Orb Magnetic Track Light
The NOVA-Orb”s compact form factor and precise beam control make it a versatile choice across a wide range of applications:

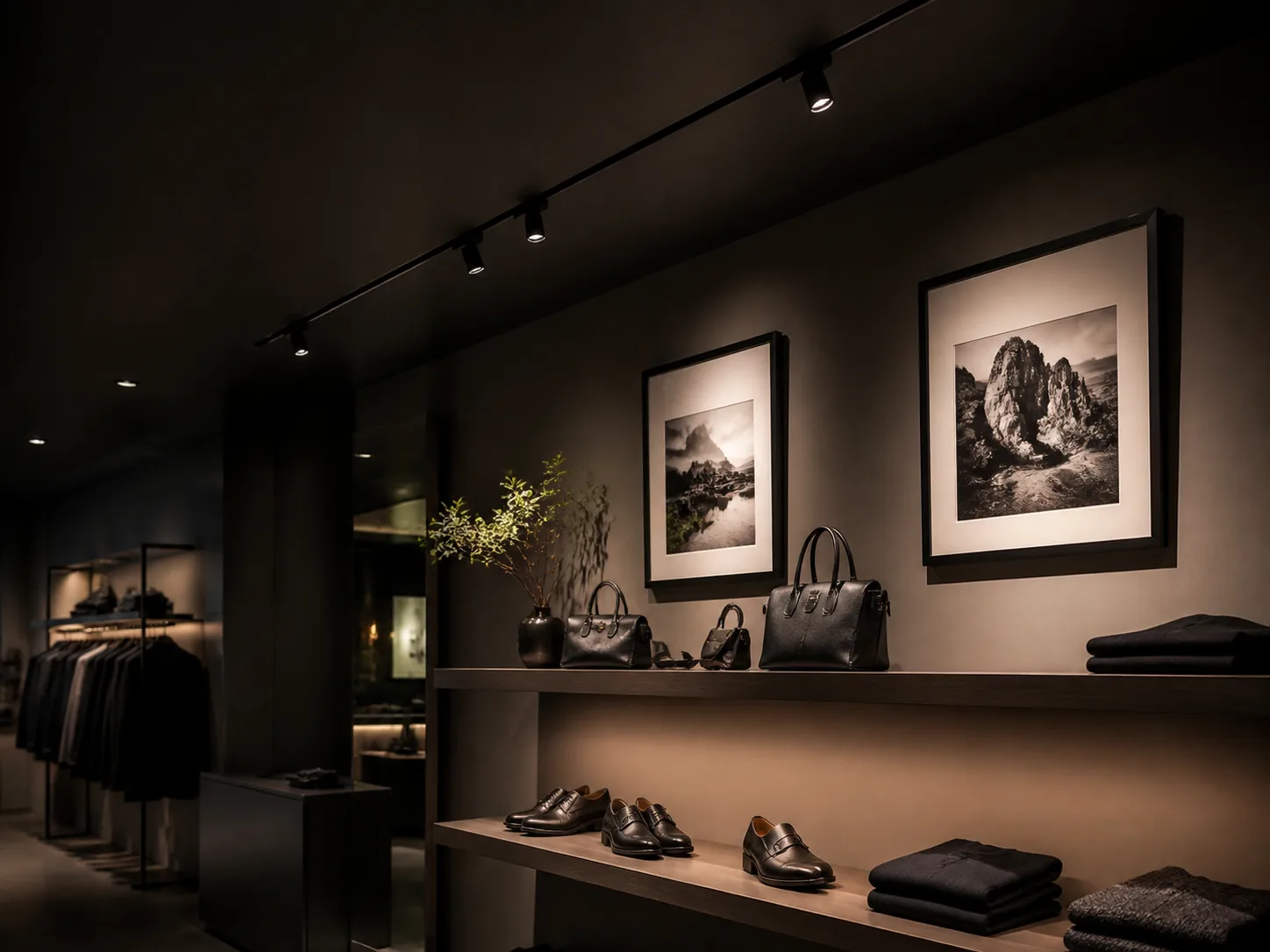

Retail & Boutique Stores
Highlight merchandise with crisp, even accent lighting. The 30° beam draws attention to individual displays, shelving, and feature walls without overwhelming the overall store ambiance.
Museums & Art Galleries
The NOVA-Orb”s museum lighting capability is amplified by its flicker-free performance and excellent color rendering. CRI 80+ ensures artwork colors appear true to life under artificial light.
Hospitality & Residential
Kitchen islands, living room accent walls, and corridor displays benefit from the NOVA-Orb”s warm 3000K option, which creates inviting, hotel-quality ambiance in residential settings.
Office & Co-working Spaces
The 4000K neutral white option provides focused task lighting for workstations and meeting areas, while DALI2 and 0-10V dimming allow seamless integration with building management systems.
Why Choose the NOVA-Orb Over Standard Track Lights?
Traditional GU10 or MR16 track spotlights require manual adjustment and lack the flexibility of magnetic track systems. The NOVA-Orb magnetic track light solves this with a tool-free, hot-plug-safe magnetic interface — reconfigure your lighting layout in seconds without an electrician.
- vs. Fixed GU10 Spots: Magnetic repositioning without tools vs. manual socket adjustment
- vs. Standard MR16: DC48V safety advantage + flicker-free driver built-in
- vs. Larger Track Fixtures: Ø80mm orb footprint is 60–70% smaller than typical track heads
NOVA-Orb Frequently Asked Questions
How many lumens does the NOVA-Orb produce?
The NOVA-Orb emits 374 lumens at 3000K from just 4W of power, giving an 85 lm/W luminous efficacy that is unusually efficient for a compact magnetic track head. At 4000K the output is marginally higher, still well above the output of comparable 4W GU10-style spots.
Can the NOVA-Orb be used on any magnetic track system?
The NOVA-Orb is compatible with 15mm and 20mm low-voltage magnetic track rails operating at DC48V. It is designed to slot into ENCORE’s magnetic track system, and the hot-plug-safe magnetic connection lets you attach, remove, and reposition the head without switching off power.
Is the NOVA-Orb dimmable?
Yes. The NOVA-Orb supports 0-10V dimming, DALI2, and Bluetooth smart control protocols, so it can be paired with a compatible dimmer or a building-management system for smooth, flicker-free dimming from 100% down to very low levels.
What beam angle does the NOVA-Orb have?
The NOVA-Orb uses a fixed 30° beam, which strikes a balance between a tight spot and a usable pool of accent light. At 1 meter mounting height it delivers roughly 2,689 lux at center beam — ideal for display and accent lighting without heavy spill.
Where is the NOVA-Orb best suited?
Its compact orb form and flicker-free driver make it ideal for retail and boutique displays, museum and gallery accent lighting, hospitality spaces, and high-end residential accent walls. The 4000K option also suits office task lighting with smart-control integration.
Conclusion: Is the NOVA-Orb Right for Your Project?
The NOVA-Orb 4W magnetic track light is an excellent choice for lighting designers and architects who need a compact, high-efficiency accent luminaire with modern smart control capability. Its orb design, flicker-free performance, and DC48V magnetic track compatibility make it particularly well-suited for museum lighting, retail display lighting, and high-end residential applications.
At .00 per unit, the NOVA-Orb sits in the premium architectural lighting category — justified by its build quality, smart control compatibility, and sub-100mm form factor. For projects requiring bulk orders or custom configurations, contact ENCORE directly for volume pricing.
Ready to specify the NOVA-Orb for your project? Browse the full ENCORE Magnetic Track Light collection or contact ENCORE”s lighting design team for a free consultation.
