Products Specification
| Application | Recessed-mounted, Surface-mounted, Pendant |
| SDCM | ≤3 |
| Beam Angle | 24°, 38°, 50° |
| Power | 20W, 25W |
| Static White | 2700K, 3000K, 4000K, 5000K |
| Tunable White | 2700K-5000K |
| Full Spectrum | RGBCW |
Secondary Reflector
Frame Color

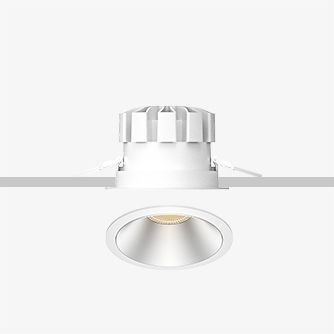

Galaxy Downlight 20W-25W
Galaxy is designed to be well adapted to high ceiling applications thanks to its super high efficient thermal management and high light efficiency 100lm/W. It supports tunable white and CCT selectable with quality light distribution and low glare UGR<16.
General Lighting & Accent Lighting
Available in 24°, 38°, 50° beam angles.
UGR<16 Anti-glare
Good glare control with UGR<16.
Magnetic Reflector
Tool-free installation. Reflector can be swapped without tools.
Excellent Thermal Management
Die-cast aluminum housing with smart ventilation.
IP54 Waterproof
Suitable for transitional areas.
Specs
Features
- 4 inch max 25W
- High lumen efficiency of 100lm/W
- Tunable white for flexible adjustment
- Low glare UGR<16
- Magnetic reflector design
Specsheet
| Order Info. | Power | LED Current | Luminous Flux(lm) | CRI | CCT | Beam Angle |
|---|---|---|---|---|---|---|
| GR100-24D | 20W | 500mA | 1928 | 90+ | 3000K | 24° |
| GR100-38D | 20W | 500mA | 1979 | 90+ | 3000K | 38° |
| GR100-50D | 20W | 500mA | 1899 | 90+ | 3000K | 50° |
| GR100-24D | 25W | 600mA | 2237 | 90+ | 3000K | 24° |
| GR100-38D | 25W | 600mA | 2277 | 90+ | 3000K | 38° |
| GR100-50D | 25W | 600mA | 2263 | 90+ | 3000K | 50° |
Accessories
None
