Products Specification
| Application | Recessed-mounted |
| SDCM | ≤3 |
| Beam Angle | 15°, 24°, 33°, 45° |
| Power | 10W, 15W |
| Static White | 2700K, 3000K, 3500K, 4000K |
| Dim-to Warm | 1800K-3000K |
| Tunable White | 2700K-6000K |
| Full Spectrum | RGBCW |
General Features
Accessories
| Image | Description | Model NO# | Available for |
|---|---|---|---|
 | Honeycomb | DM60-H | DM60 |
 | Soft Lens | DM60-L | DM60 |
Secondary Reflector

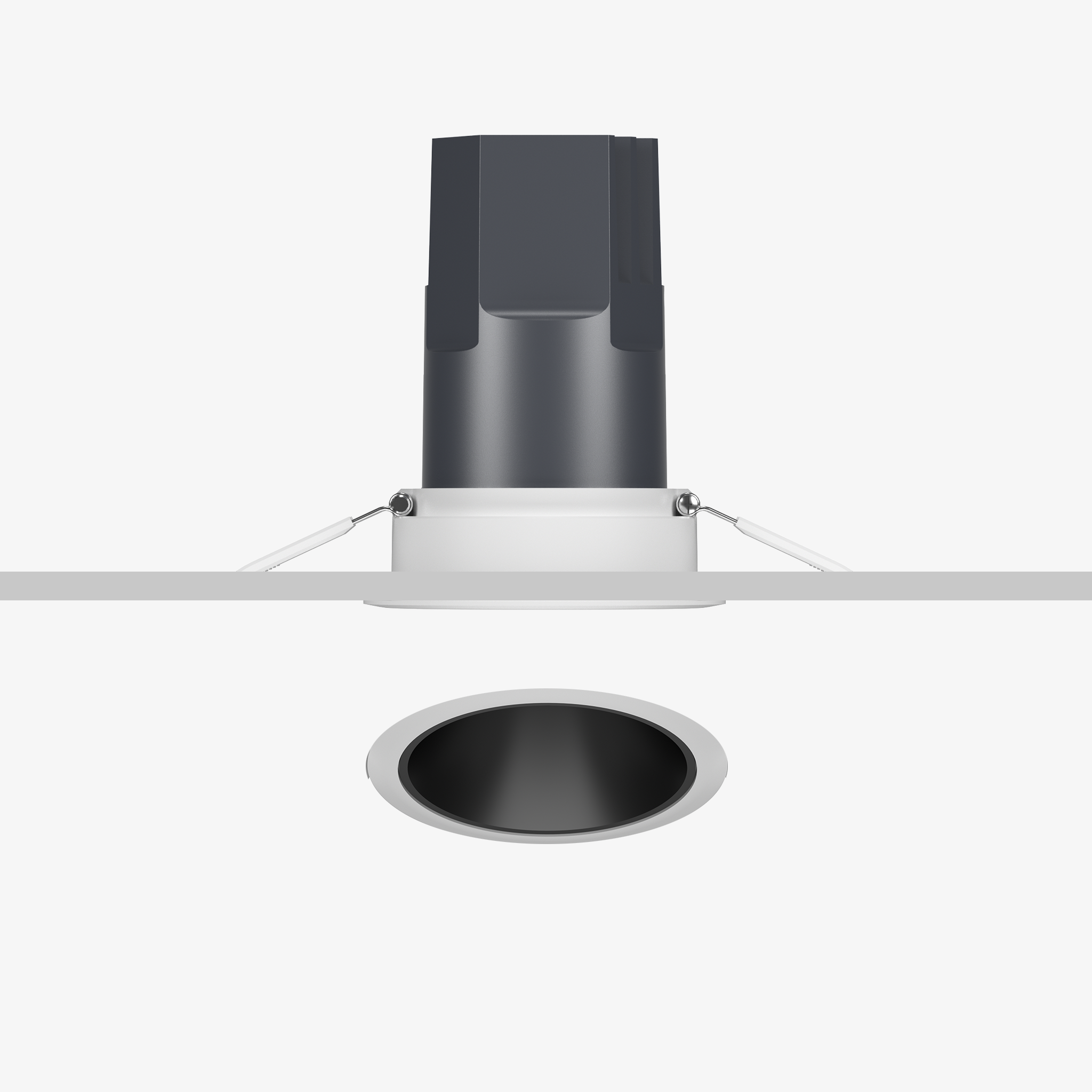

DELLA Fixed Downlight 10W-15W
DELLA Fixed Downlight embodies exceptional optical control and glare management in a clean, minimalist form. With its narrow bezel seamlessly integrating into the ceiling, it delivers visual comfort through a precise 45° cut-off angle and low UGR. Tool-free modularity allows easy optical and LED engine replacement.
4 Beam Angles
Available in 15°, 24°, 33° and 45° beam angles.
Pull Ring Design (Foldable)
No more hard work, pull out LED engine in second.
Super Modular Design
Any parts could be replaced manually without tools.
Specs
Features
- All optics and trims replaceable without tools.
- Super modular design for tool-free replacement.
- 45° cut-off angle with excellent UGR performance.
- Minimal bezel for clean ceiling appearance.
Specsheet
| Order Info. | Power | Luminous Flux(lm) | Max Candela(cd) | CRI | CCT | Beam Angle |
|---|---|---|---|---|---|---|
| DM60-DF61RF01N | 10W | 621 | 5653 | 90+ | 3000K | 15° |
| DM60-DF61RF01N | 10W | 727 | 4553 | 90+ | 3000K | 24° |
| DM60-DF61RF01N | 10W | 758 | 2526 | 90+ | 3000K | 33° |
| DM60-DF61RF01N | 10W | 781 | 1436 | 90+ | 3000K | 45° |
| DM60-DF61RF01N | 15W | 822 | 7476 | 90+ | 3000K | 15° |
| DM60-DF61RF01N | 15W | 970 | 6062 | 90+ | 3000K | 24° |
| DM60-DF61RF01N | 15W | 1024 | 3421 | 90+ | 3000K | 33° |
| DM60-DF61RF01N | 15W | 1042 | 1911 | 90+ | 3000K | 45° |
