Products Specification
| DC | DC24V |
| Material | Aluminum |
| Length | 1000mm / 2000mm / 3000mm |
| Finishes | Black / White / Custom |
| Installation | Surface / Pendant / Recessed |

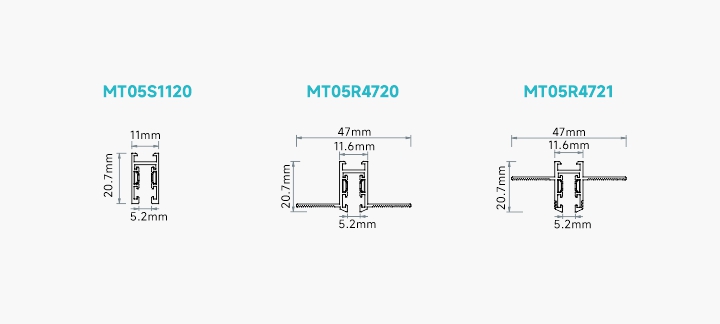

Line Drawing
Accessories
Frame Color
5mm-Magnetic Track (DC24V)
The 5mm-Magnetic Track is a slim and versatile magnetic track profile designed for ENCORE’s 5mm magnetic track lighting system. Operating on DC24V low-voltage safe power, this aluminum track is available in 1000mm, 2000mm, and 3000mm lengths with black, white, or custom finishes. Supporting surface-mounted, pendant, and recessed installation methods, this track profile offers maximum flexibility for modern commercial and residential lighting layouts. Compatible with a full range of 5mm magnetic track accessories, including corner connectors, power feeds, and suspension kits, it enables seamless linear and grid lighting configurations for retail stores, museums, galleries, offices, and hospitality environments.
Flexibility in Installation
Encore magnetic track lighting system offers different installation types. One profile with 4 options: surface-mounted, built-in and semi-recessed with the recessed kit and suspended with the suspension kit.
There is a special trimless recessed profile for plaster walls and ceilings. In combination with various corner connections, Encore magnetic lighting moves effortlessly through any room.
Copper Strip Construction
- Copper strip made of high purity red copper for superior conductivity.
- Copper strip thickness 0.6/0.8 mm.
- Copper and plastic extruded as one part.
- The “ladder type” design to avoid slip out of copper strip.
Magnetic Module
- Auxiliary pull-out buckle design.
- Mechanical buckle design.
- Wide conductive copper design.
- Super magnetic structure on the top.
- Adopt the laptop shell surface treatment process with a more attractive outlook.
- PC (High-class polycarbonate) V0 flame retardant material, impact and oxidation resistance, longer lifetime, to ensure product safety.
Specs
Features
- DC24V low-voltage safe operation
- Aluminum profile construction for durability and heat dissipation
- Available in 1000mm, 2000mm, and 3000mm lengths
- Finishes: Black, White, or Custom color
- Installation: Surface-mounted, pendant, or recessed
- High purity red copper strip with 0.6/0.8 mm thickness
- Copper and plastic extruded as one part with ladder type design
- Compatible with 5mm magnetic track accessories and corner connections
- Magnetic module with pull-out and mechanical buckle design
- PC V0 flame retardant material for safety and longevity
Specsheet
| Model | DC | Material | Length | Finishes | Installation |
|---|---|---|---|---|---|
| 5mm-Magnetic Track | DC24V | Aluminum | 1000mm | Black / White / Custom | Surface / Pendant / Recessed |
| 5mm-Magnetic Track | DC24V | Aluminum | 2000mm | Black / White / Custom | Surface / Pendant / Recessed |
| 5mm-Magnetic Track | DC24V | Aluminum | 3000mm | Black / White / Custom | Surface / Pendant / Recessed |
